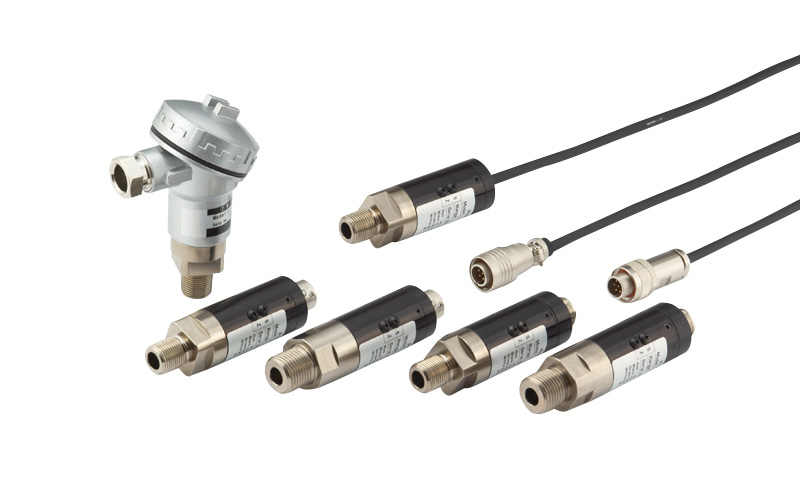

VPRT (F) series
|
|
|
|
High Accurate Pressure Transmitter for Middle High Pressure
High accuracy (Nonlinearity: ±0.2%R.C.)
Sensor machined integral with diaphragm offers durability and long life
Pressure port diameter is as large as 9.5 mm, which allows less sludge or fluid to accumulate
Non Linearity ±0.2%R.C. (1MPa:±0.3%R.C.)
Safe Temperature Range −30–80°C (No condensation or freezing)
Download E-Brochure
|
|

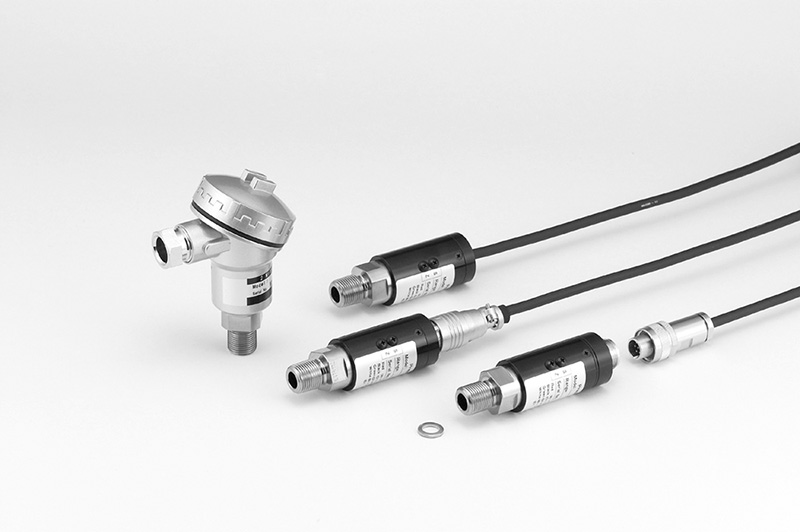

VPRQ (F) series
|
|
|
|
General-purpose Pressure Transmitter for Middle High Pressure
Sensor machined integral with diaphragm offers durability and long life
Economy type that offers quick delivery and low price.
Pressure port diameter is as large as 9.5 mm, which allows less sludge or fluid to accumulate
Non Linearity ±0.8%R.C. (100MPa:±1%R.C.)
Hysteresis ±0.8%R.C. (100MPa:±1%R.C.)
Safe Temperature Range −40–100°C (No condensation or freezing)
Download E-Brochure
|
|

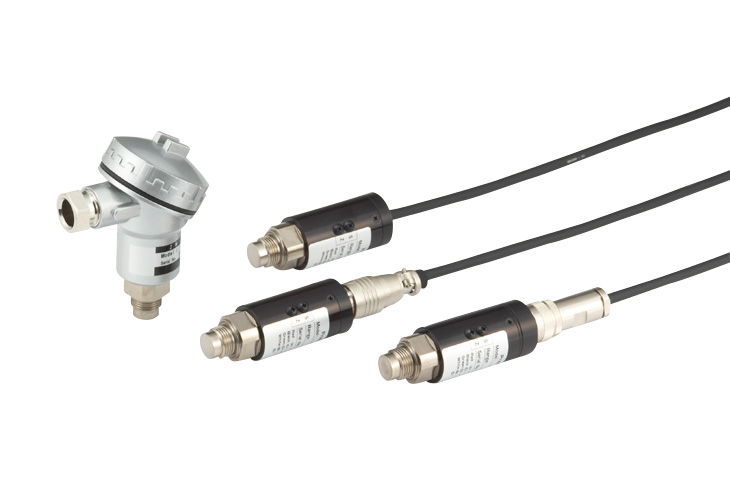

Pressure Transmitter for Flush type Middle High Pressure -VPRF
|
|
|
|
Suitable for measurement of viscous media since the flush type (no feed port) wetted part is hardly clogged up
Wetted part constructed integral with diaphragm does not use any sealed liquid, offering durability, reliability and long life
Abundant analog output available. [4–20mA (2 wire system, 4 wire system), 1–5V, 0–5V, 0–10V]
High accurate (Non Linearity: ±0.5%R.C.)
Download E-Brochure
|
|

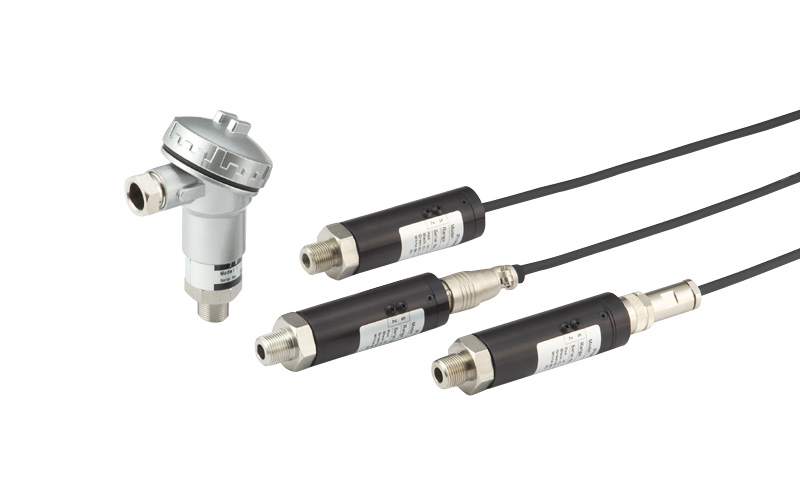

Valcom Low Pressure Transmitter VPNPR
|
|
|
|
Diaphragm structure enables high accuracy measurement even in lower pressure range. (Non Linearity: ±0.25%R.C.)
Highly leak-proof and can be used even at high vacuum.
Gauge pressure reference and absolute pressure reference available.
Download E-Brochure
|
|

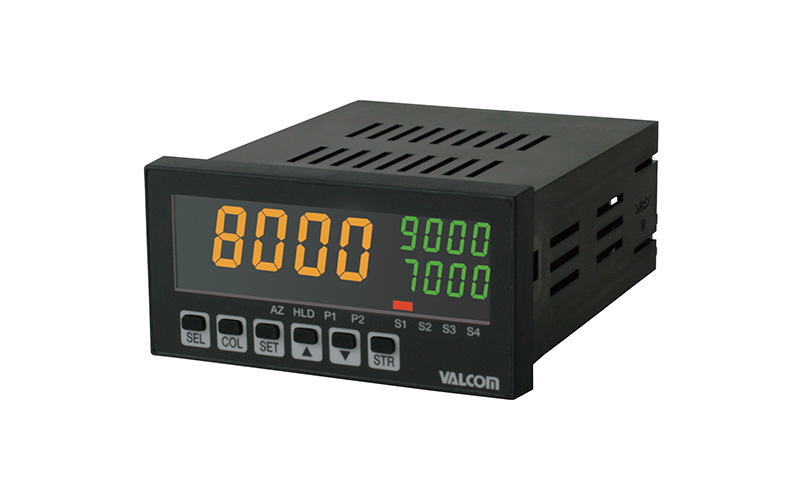

Valcom Digital Panel Meter VALCOR series F3
|
|
|
|
Current operation state (normal/abnormal) can be found easily by the color of the value (on main display).
Measured values can be displayed in 3 colors: red, orange and green, as desired, in areas partitioned by set values.
High speed sampling as fast as 2000 samples per second.
Fast output enables use for high-speed and safe control purposes.
Analog output ranges of 4 to 20 mA, 1 to 5 V and 0 to 5 V included as standard.
Output scaling function included, which allows the measurement range to be set variable as desired.
Download E-Brochure
|
|
Valcom Low Pressure Transmitter VPNPR
|
|
|
|
Diaphragm structure enables high accuracy measurement even in lower pressure range. (Non Linearity: ±0.25%R.C.)
Highly leak-proof and can be used even at high vacuum.
Gauge pressure reference and absolute pressure reference available.
Download E-Brochure
|
|

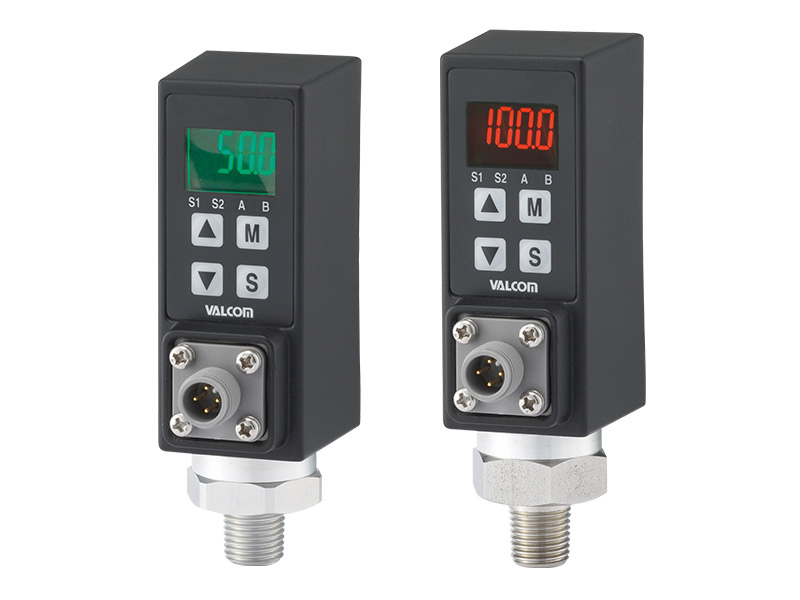

Valcom VSW2 series (For Low-Absolute pressure)
|
|
|
|
"Max./min memory" function included, which allows abnormal pressures detected so far to be checked during operation
Color LCD adopted with display colors "red and green" intuitively understandable for users.
Compact design (length: 111 (107) mm, width: 37 mm) suitable as a replacement for mechanical switch.
Setting output can be selected between higher/lower limits and NPN/PNP (Factory-set at NPN/PNP.)
Download E-Brochure
|
|
