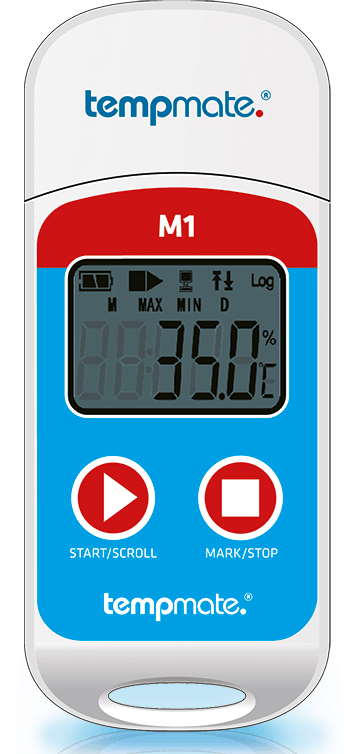

Tempmate Data Logger M1
|
|
|
|
| Data logger type | | Reusable data logger |
| Temperature range | | -30°C to +70°C |
| Accuracy | | ±0.5°C (at -20°C to +40°C) |
| Resolution | | 0.1°C |
| Storage capacity | | 32,000 measurements |
| Battery | | CR2032 / Can be replaced by the customer |
| Measurement interval | | 10 seconds to 24 hours |
| Recording time | | Freely programmable by the customer / Up to 12 months |
| Startup method | | Manually at the touch of a button or automatically at the programmed startup time |
| Alarm type | | Individual or cumulative alarm |
| Protection class | | IP67 |
| Dimensions | | 79mm x 33mm x 14mm [L x W x H] |
| Weight | | approx 25g |
| Certified | | EN12830, validation certificate, CE, RoHS |
| Software | | PDF reader |
| Auto PDF report | | Yes |
| PC connection | | USB 2.0, Type A |
|
|

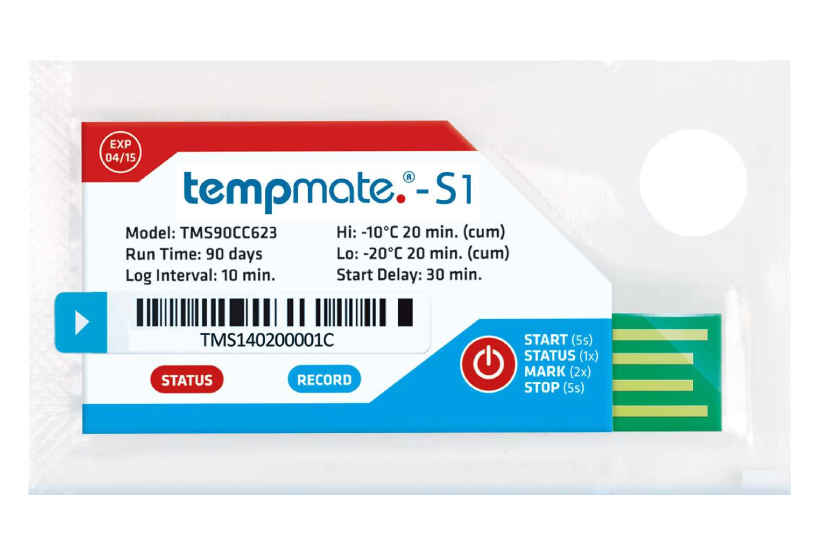

Tempmate Data Logger S1
|
|
|
|
| Data logger type | | Single-Use data logger |
| Temperature range | | -30°C to +70°C (-22°F to 158°F) |
| Accuracy | | ±0.5°C/0.9°F (-20°C/+40°C) otherwise ±1.0 |
| Resolution | | 0.1°C/°F |
| Storage capacity | | 16,000 measurements |
| Life/Battery | | 2 years/CR2450 button cell battery |
| Measurement interval | | 10 minutes (standard – other options on request) |
| Recording time | | 110 days (standard – other options on request) |
| Startup method | | Manual start or via the tempbase.®-D software |
| Stop method | | Manual stop, tempbase.®-D or automatically when full |
| Alarm type | | Single or cumulative – Up to 5 points |
| Protection class | | IPE67/NEMA 6 |
| Dimensions | | 88mm x 47mm x 7mm [L x W x H] |
| Weight | | approx 14.6g |
| Certified | | EN12830, CE, RoHS |
| Validation certificate | | Printout and stored on logger |
| Software | | PDF or CSV reader / Optional tempbase.®-D |
| Automatic report | | PDF and CSV |
| PC connection | | USB 2.0, Type A |
| Alarm configuration | | Optional up to 5 alarm thresholds |
| Programmable | | Optionally via tempbase.®-D |
| Delivery contents | | Dispatch documents, certificate, writeable label and sealeable pouch |
|
|

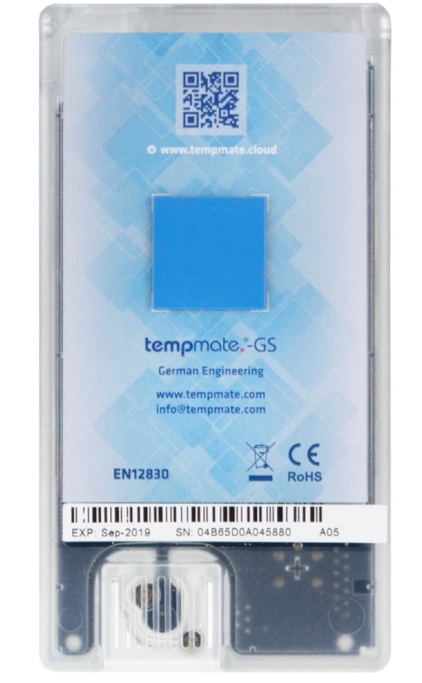

Tempmate Data Logger GS
|
|
|
|
| Data logger type | | Single-Use GSM data logger |
| Temperature range | | -30°C to +70°C (-22°F to 158°F) |
| Temperature accuracy | | ±0.2°C (–25°C/+60°C) others ±0.5°C |
| Temperature resolution | | 0.1°C |
| Data Storage capacity | | Max 15600 Records |
| Humidity | | 0 to 100%rH / Accuracy [0..90%rH] < ±2.5%, [90%..100%] < ±3.5% |
| Resolution Humidity | | 1% |
| Ambient Light | | 0 to 16000 lx / Accuracy < 10% |
| Resolution Ambient Light | | 1 lx |
| Shelf Life / Battery | | 2 Years at -25°C to +35°C / 2x CR17450 |
| Recording Interval | | 10 Minutes Standard |
| Recording Duration | | 90 Days Standard |
| Startup Mode | | Button |
| Stop Mode | | Button |
| Start Delay | | Possible 1 Minute to 48 Hours |
| Protection Class | | IP67 |
| Dimensions | | 113/59/24 mm (l/w/h) |
| Weight | | 132g |
| Certifications | | CE, EN12830, EMC, RoHS |
| Validation Certificate | | Available as PDF in the Cloud |
| Software | | tempbase.®-C Cloud |
| Report Generation | | Readable in the Cloud |
| Password Protecion | | Cloud Password Protection |
| Data Transfer | | GSM Quad Band |
| Location | | GSM Localization |
|
|

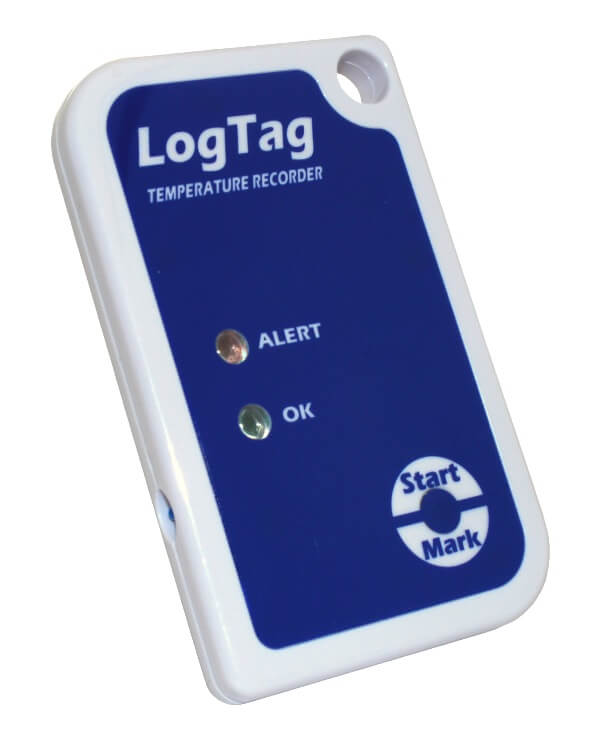

LogTag - TEMPERATURE RECORDER
|
|
|
|
| Alert indicator indicates if readings are outside of preset limits |
| OK indicator indicates if still recording and if readings within configured limits |
| Inspection mark in log by push button |
| Push Button Logging start with optional delayed start or specific Time & Date start |
| Rapid Download! Takes only seconds to download recordings |
| Real time clock records time & temperature simultaneously |
