Pressure Transducers
|
|
|
|
Designing and production of straingauge pressure transducers with ranges from 100 mbar up to 2500 bar
Version for RELATIVE,
ABSOLUTE, VACUUM and DIFFERENTIAL measures.
With amplified or non-amplified output.
Precision classes from 1.0% up to 0.05%.
high reliability.
|
|

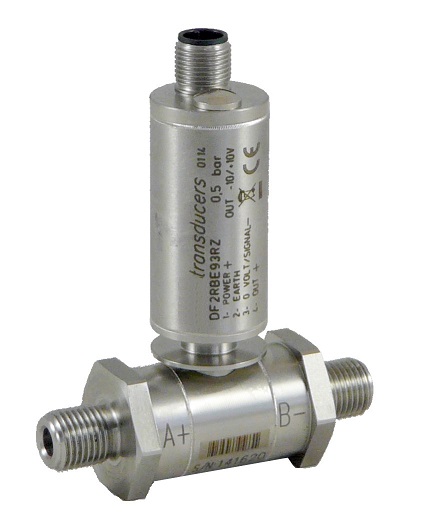

Differential Pressure Transducers (DF2R)
|
|
|
|
DIFFERENTIAL pressure transducers
Nominal pressures from 100 mbar to 15 bar
AMPLIFIED outputs: ±10Volt
Linearity and hysteresis 0,10%
|
|
DF2
|
|
|
|
DIFFERENTIAL pressure transmitter
Nominal pressures from 0,5 bar to 2000 bar
AMPLIFIED outputs: 4-20mA, 10V or 5Volt
Linearity and hysteresis 0,20%
|
|

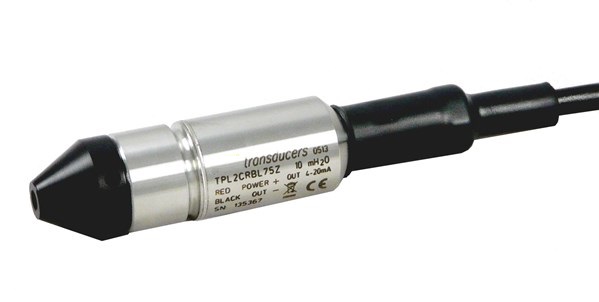

TPL2C
|
|
|
|
Pressure transmitters to permanent IMMERSION for level measures
Nominal RELATIVE pressures from 300mbar (3mH2O) to 20bar (200mH2O)
AMPLIFIED output 4-20mA 2 wires
Linearity and Hysteresis 0,10%
|
|

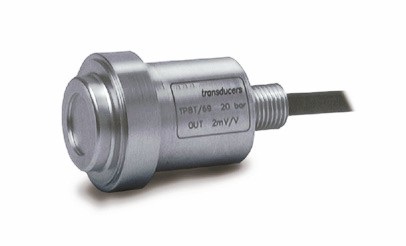

TP8
|
|
|
|
Pressure transducers for RELATIVE, ABSOLUTE and VACUUM measures
Nominal pressures from 10 bar to 1000 bar
Output 2mV/V
Linearity and hysteresis 0,50%
HIGH TEMPERATURE max. 150 ° C
|
|

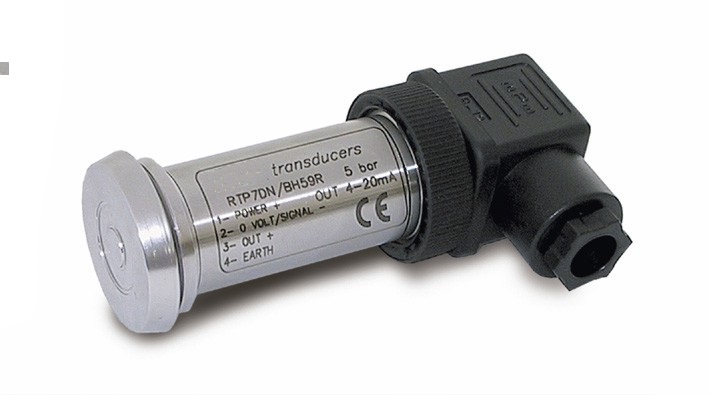

TP7DN
|
|
|
|
Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures
Nominal pressures from 1 bar to 50 bar
AMPLIFIED outputs: 4-20mA, 10V or 5Volt
Linearity and hysteresis 0,50%
|
|

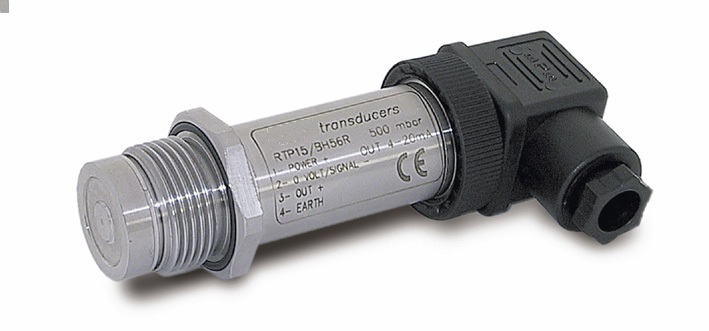

TP15
|
|
|
|
Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures
Nominal pressures from 1 bar to 50 bar
AMPLIFIED outputs: 4-20mA, 10V or 5Volt
Linearity and hysteresis 0,50%
|
|

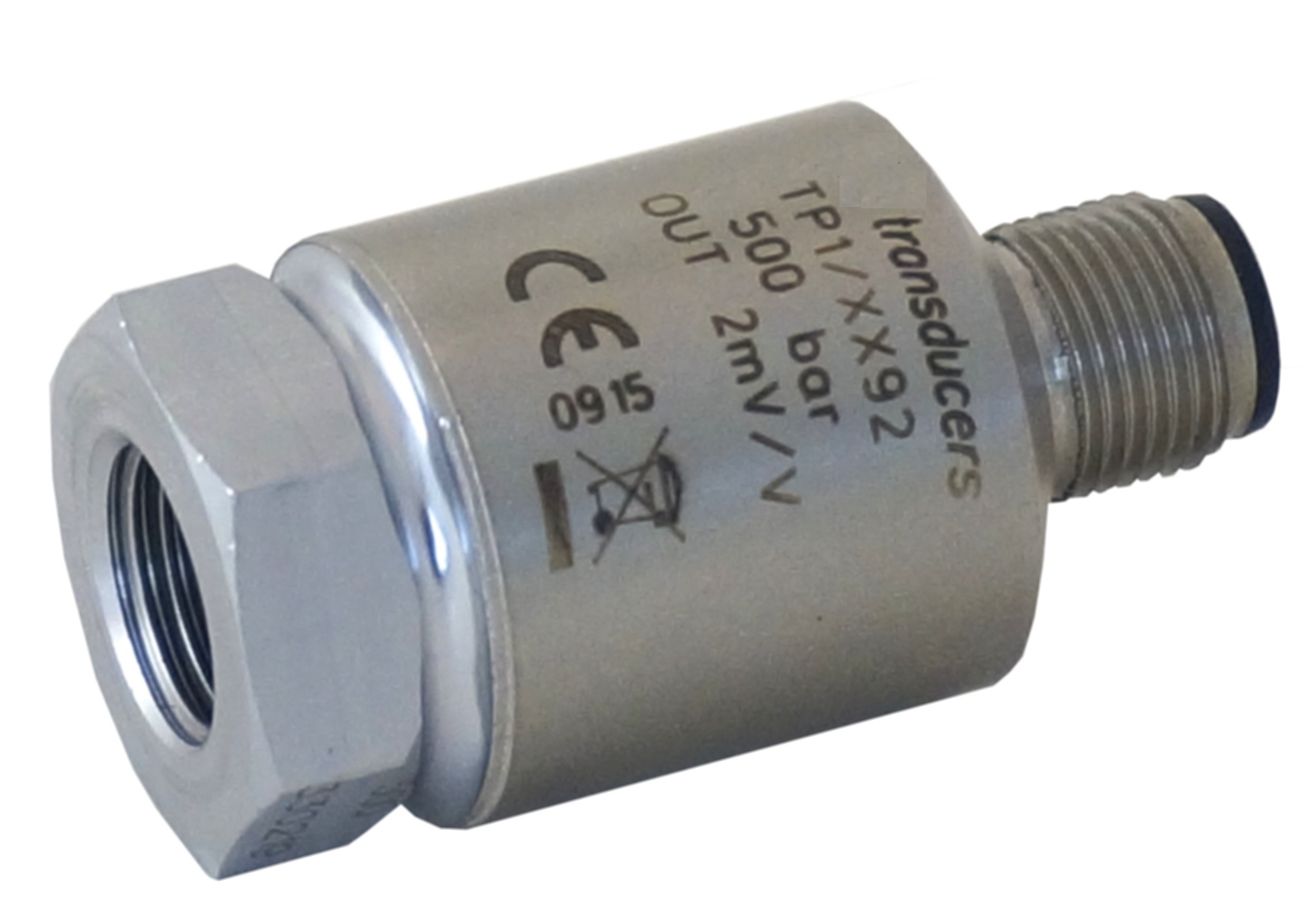

TP1
|
|
|
|
Pressure transducers for RELATIVE and ABSOLUTE measures
Nominal pressures from 10 bar to 700 bar
Linearity and hysteresis 0,20%
TP1 standard output 2mV/V
TP1A amplified ouput 0,5-5,5 Volt
|
|

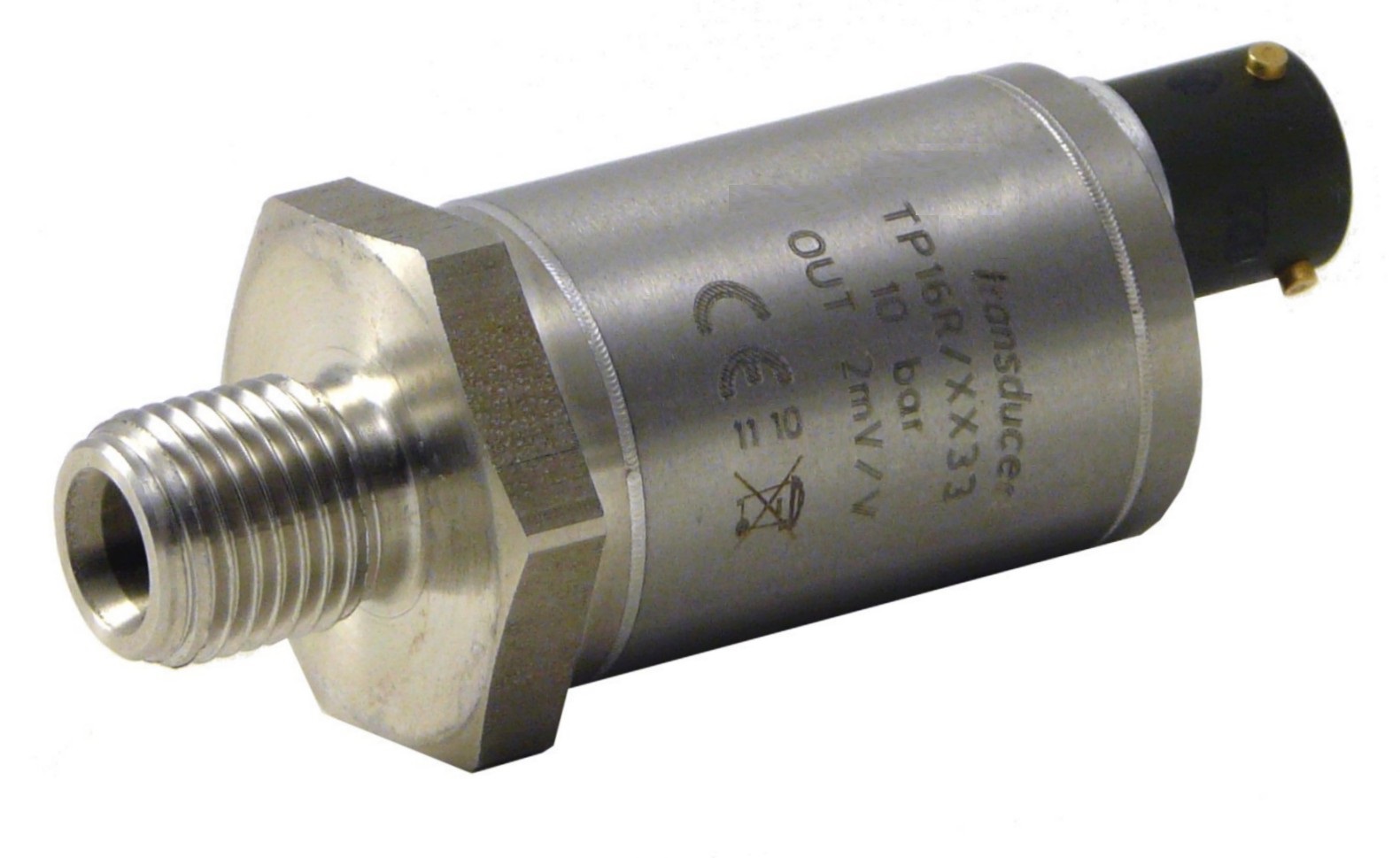

TP16
|
|
|
|
Pressure transducers for RELATIVE and ABSOLUTE measures
Nominal pressures from 5 bar to 2000 bar
Output 2mV/V
Linearity and hysteresis 0,10%
|
|

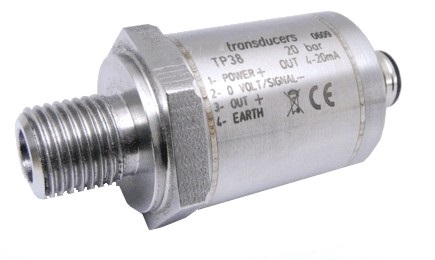

TP38
|
|
|
|
Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures
Nominal pressures from 100 mbar to 2000 bar
AMPLIFIED outputs: 4-20mA, 0.5-10.5V and 0.5-5.5Volt
Linearity and hysteresis 0.25%, 0.50% or 1% |
|

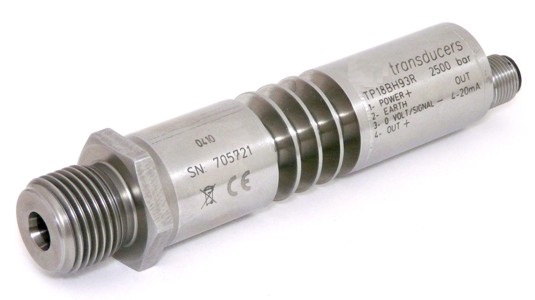

TP18
|
|
|
|
Pressure transmitters for RELATIVE and ABSOLUTE measures
Nominal pressures from 5 bar to 2500 bar
AMPLIFIED outputs: 4-20mA, 10V or 5Volt
Linearity and hysteresis 0,20%
HIGH TEMPERATURE max. 150 ° C
|
|
TP3
|
|
|
|
Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures
Nominal pressures from 100 mbar to 2000 bar
AMPLIFIED outputs: 4-20mA, 10V or 5Volt
Linearity and hysteresis 0,50%
|
|
TP12
|
|
.jpg)
|
|
Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures
Nominal pressures from 100 mbar to 2000 bar
AMPLIFIED outputs: 4-20mA, 10V or 5Volt
Linearity and hysteresis 0,20%
|
|
TP14
|
|
|
|
Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures
Nominal pressures from 100 mbar to 2000 bar
AMPLIFIED outputs: 4-20mA, 10V or 5Volt
TP14 Linearity and hysteresis 0,10%
LabTP14 Linearity and hysteresis 0,05%
|
|
