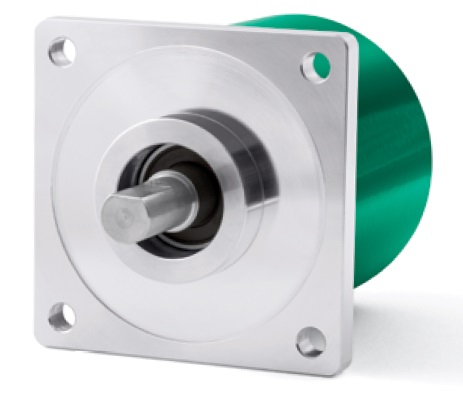

AST6 • AMT6
|
|
|
|
US standard optical encoders
Robust die-cast housing
MIL standard connector
Single turn up to 18 bit (262144 cpr) and multi turn up to 16x14 bit (65536 x 16384)
Additional incremental track, 1024 PPR available
High degree of protection, IP66
BCD output code on request
Download E-Brochure
|
|

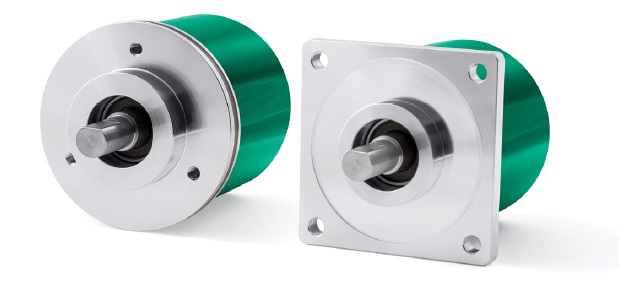

I65 • IT65
|
|
|
|
Robust die cast housing
High shaft load
Protection up to IP66 (shaft side)
Clamp flange
Square flange, US size
Preferential versions available
Download E-Brochure
|
|

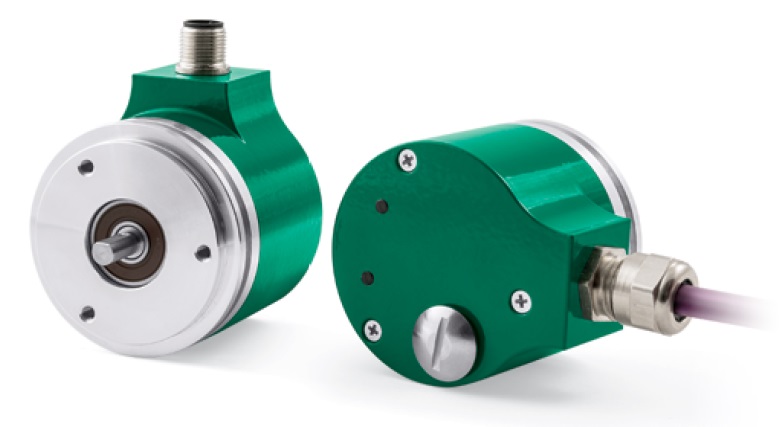

Ax58 • Ax58S • AxC58 EasyCAN
|
|
|
|
Compact CAN single and multi turn encoders
High resolution, 18 bits or 30 bits
CANopen and CANlift protocols
Point-to-point connection
Velocity output & roundloop function
Resistant against magnetic fields
Download E-Brochure
|
|

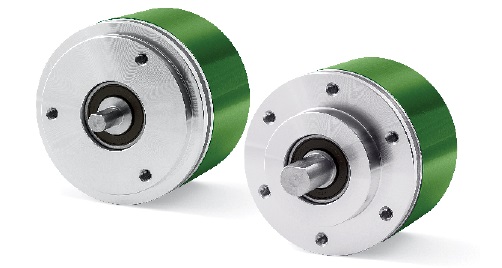

I58 • I58S
|
|
|
|
Standard encoder for general industrial application
Pulse rates up to 10000 PPR (real)
Servo or clamp flange mounting
High operating temperature range (optional)
Line Driver, HTL and sine/cosine output circuits
Download E-Brochure
|
|

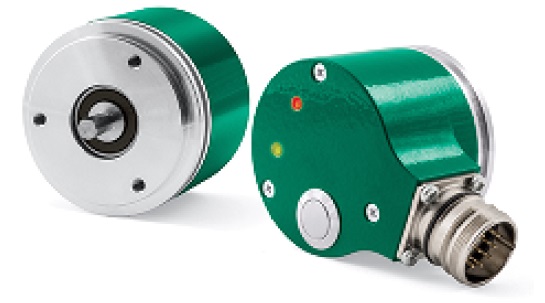

IP58 • IP58S • CKP58 • CKP59 • CKP60
|
|
|
|
Programmable incremental encoder
Resolution from 1 to 65536 PPR
Freely programmable index (push-button)
Counting direction cw, ccw
LinePush-Pull + Line Driver compatible output
Selectable output voltage 5Vdc or 10-30Vdc
Programmable via USB cable
Download E-Brochure
|
|

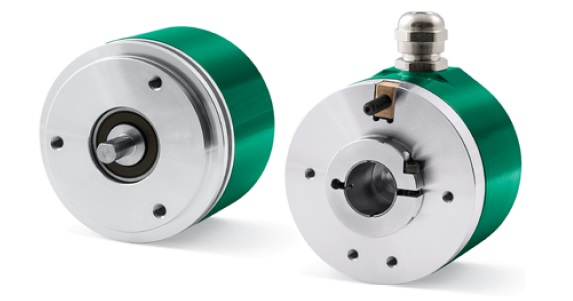

IX58 • IX58S • CX58 • CX59
|
|
|
|
Solid and hollow shaft mounting
Pulse rates up to 10000 PPR
Universal output circuit
ATEX cat. 3 certification for zones 2, 22
Download E-Brochure
|
|

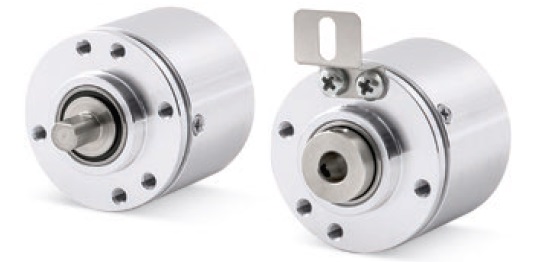

MI36 • MC36
|
|
|
|
Compact magnetic incremental encoder
Resolution up to 2048 pulses/rev
6 mm solid or hollow shaft
IP67 with sealed circuits (optional)
Download E-Brochure
|
|

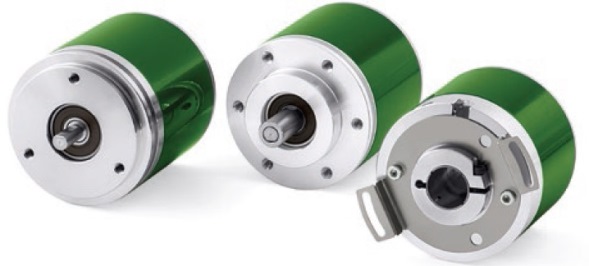

EM58 • EM58S • EMC58
|
|
|
|
Compact multi turn encoder
Precise and fast optical sensing
Resolution up to 8192 cpr and 16384 turns
Additional incremental track with 1024 PPR
High degree of protection, IP67
Download E-Brochure
|
|
C50
|
|
|
|
Small size hollow shaft encoder
Ideally suited for motor feedback applications
Extended standard operating temperature from -40°C to 100°C
Universal output circuit TTL/HTL 5-30Vdc
Preferential versions with fast delivery
Download E-Brochure
|
|
C80
|
|
|
|
Feedback encoder for big size motors
Precise optical sensing
Very flat design
Through hollow shaft up to Ø 30 mm
Robust die cast housing with IP65 protection
Download E-Brochure
|
|
C81
|
|
|
|
Encoder for lift traction machines and big size motors
Precise optical sensing
Internal structure in stainless steel
Hollow shaft from Ø 30 to Ø 44 mm
Download E-Brochure
|
|

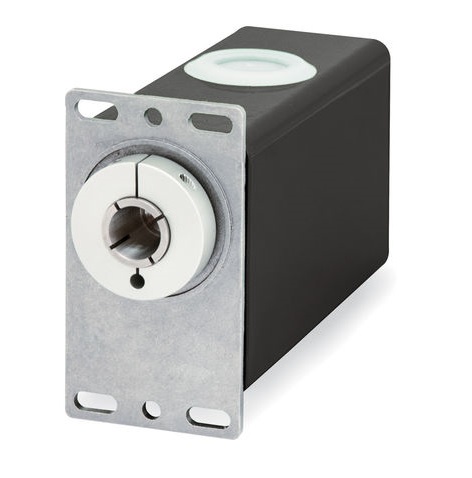

RD5 - RD53
|
|
|
|
Compact rotary actuators with halt brake
Quick change-over and positioning on secondary axes
All-in-one gearmotor-drive-position controller and encoder
Closed loop position control
Absolute multiturn encoder
RD53 with integrated halt-brake
Boot loader via CANopen
Download E-Brochure
|
|
MI58 • MI58S • MC58 • MC59 • MC60
|
|
|
|
Magnetic sensing technology
Solid and through hollow shaft design
Resolution up to 10000 PPR (others on request)
High protection degree with sealed circuits
Download E-Brochure
|
|
